Metal Plate Edge Beveling Machine

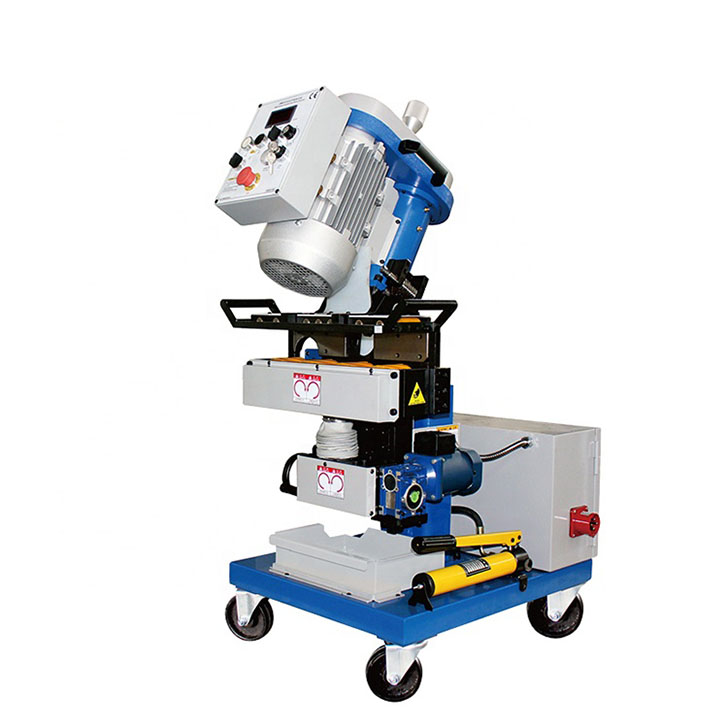

CJ-60S Beveling Machine

Our CJ series 60S plate edge milling machine, designed for precision metal edge beveling in weld preparation. This versatile machine offers a working range of clamp thickness from 6mm to 60mm, and it allows adjustable bevel angles ranging from 10 to 60 degrees. The GMMA series is renowned for its high precision, capable of achieving surface finishes as fine as Ra 3.2-6.3. Experience excellence in metal edge beveling with our advanced equipment.

request a quote

Models	CJ-60S	CJ-60L	CJ-80A	CJ-80R	CJ-100L	CJ-100K	CJ-R3TD	CJ-R3AR
Power Suppy	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ	AC 380V 50HZ
Total Power	4520W	4520W	4920W	4920W	6520W	6480W	1900W& 0.5-0.8 Mpa	1900+400W
Spindle Speed	1050r/min	1050r/min	500~1050r/min	500-1050mm/min	500-1050mm/min	500~1050r/min	2800r/min	2800r/min
Feed Speed	0~1500mm/min	0~1500mm/min	0~1500mm/min	0~1500mm/min	0~1500mm/min	0~1500mm/min	0~4000mm/min	0~4000mm/min
Clamp Thickness	6~60mm	6~60mm	6~80mm	6~80mm	6~100mm	6~100mm	8~60mm	8~60mm
Clamp Width	>80mm	>80mm	>80mm	>80mm	>100mm	≥100mm	≥100mm	≥100mm
Clamp Length	>300mm	>300mm	>300mm	>300mm	>300mm	≥400mm	≥300mm	≥300mm
Bevel Angel	0~60 degree	0~90 degree	0~60 degree	0~±60 degree	0~90 degree	Top 0~90 ° and Down 0~-45°	/	/
Singel Bevel width	0-20mm	0-20mm	0-20mm	0-20mm	15-30mm	0-20mm	3mm	3mm
Bevel Width	0-45mm	0-60mm	0-70mm	0-70mm	0-100mm	Top 0~60mm and Down 0~45mm	C2/C3/R2/R3	R2/R3
Cutter Diameter	Dia 63mm	Dia 63mm	Dia 80mm	Dia 80mm	Dia 100mm	2 * Dia 63mm	2 * Dia 60mm	2 * Dia 60mm
Inserts QTY	6 pcs	6 pcs	6 pcs	6 pcs	7 pcs/9pcs	2 *6 pcs	2 *3 pcs	2 *3 pcs
Worktable Height	700-760mm	700-760mm	700-760mm	700-760mm	810-870mm	810-870m'm	800-860mm	730-790mm
Suggest Table Height	730mm	730mm	730mm	730mm	830mm	830mm	830mm	760mm
Worktable Size	800*800mm	800*800mm	800*800mm	1200*800mm	1200*1200mm	800*800mm	1200*900mm	1000*1000mm
Clamping Way	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping	Auto Clamping
Wheel Size	4 Inch STD	4 Inch STD	4 Inch STD	4 Inch Heavy duty	4 Inch Heavy duty	4 Inch Heavy duty	/	4 Inch STD
Machine Height Adjust	Hydraulic	Hydraulic	Hydraulic	Handwheel	Handwheel	Handwheel	Handwheel	Handwheel
Machine N.Weight	200 kgs	225 kgs	245 kgs	310 kgs	420 kgs	395 kgs	380kg	300kg
Machine G Weight	255 kgs	260 kgs	280 kgs	380 kgs	480 kgs	460 kgs	430kg	380kg
Wooden Case Size	8006901140mm	9507001230mm	8006901140mm	11006301340mm	95011801430mm	95011801430mm	140012001230mm	9507001230mm
