Single Head Chamfering Machine


Single Head Chamfering Machine

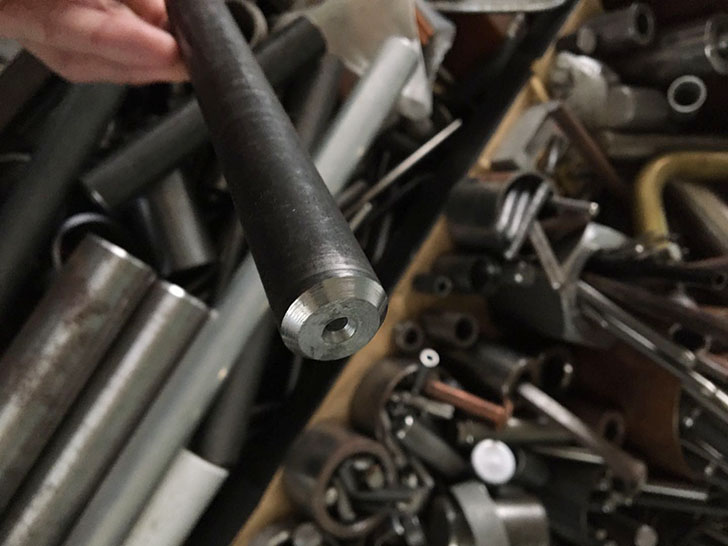

Single Head Chamfering Machine Samples

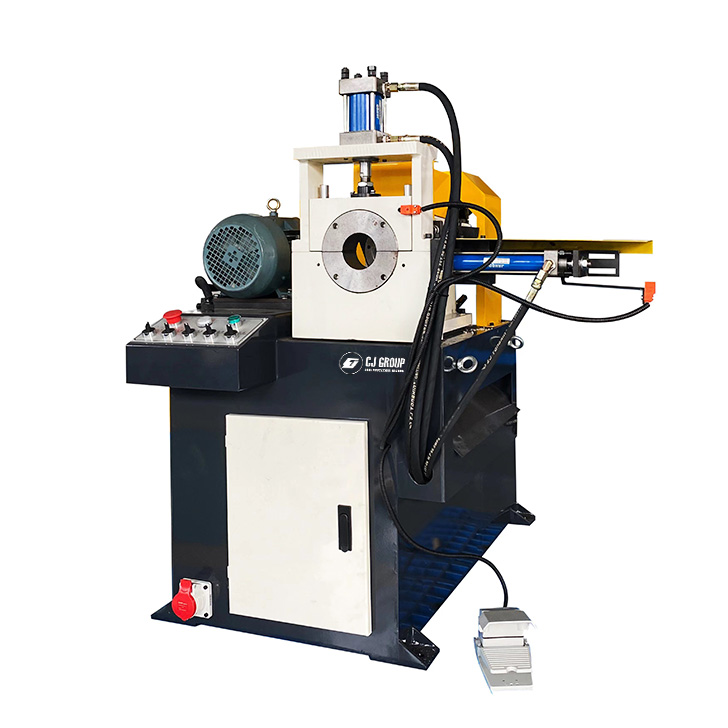

CJ-80 Tube Chamfering Machine

The CJ-80 Chamfering Machine: Ideal for Tube and Bar Chamfering up to 80mm OD
Enhance your metalworking capabilities with the CJ-80 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 80mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

request a quote

Parameters

Model

CJ-80

Type

Pneumatic/Hydraulic Drive

Pipe Diameter

8-80mm

Bar Diameter

5-30mm

Work Length

≥30mm

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

1.5kw/2kw

Work Pressure

MPA 6-8KG

Weight

300KG

Dimension

118*118*130cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc


Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
