Heavy Duty Circular Saw Machine, China Factory Price

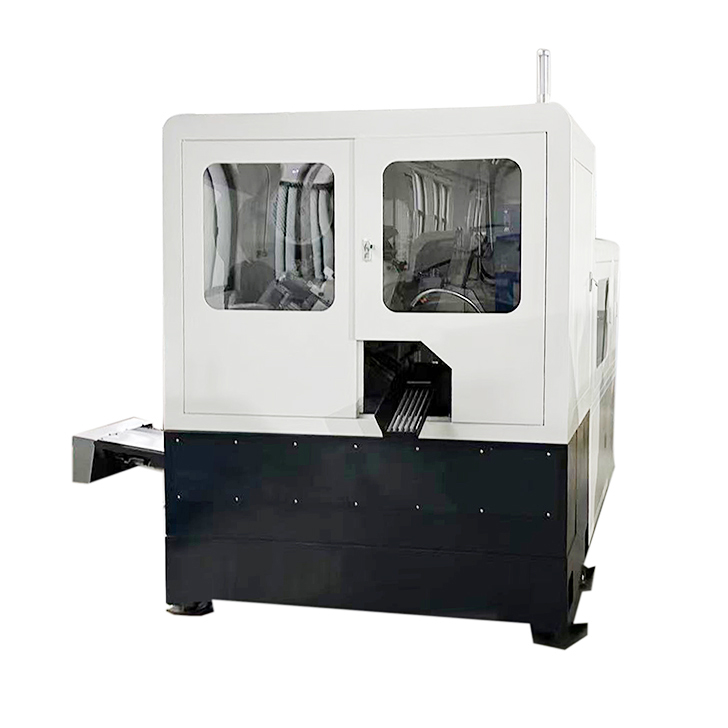

Heavy Duty Circular Saw Machine

CJ-150 Circular Saws

CJ-150 the heavy duty circular saw machine, our innovation tailored for efficiency and precision. Its standout feature is the short-tail design, optimizing material use and reducing waste. Unique to the CJ-150 is its 3-axis system, including a third axis that smartly pulls material forward to minimize tail length.
Additionally, the CJ-150 can be enhanced with a scrap-sucking device for pipe cutting, a practical solution to extend blade life and maintain cutting efficiency by removing internal scraps. This feature not only keeps the blade sharper for longer but also increases overall productivity. The CJ-150 is the perfect choice for those seeking a high-performance, durable cutting tool that maximizes efficiency and minimizes downtime.

request a quote

Parameters

Model/Specification	CJ-150
Cutting Capacity	Round	≤150 mm
Square	≤130x130mm
rectangle	≤100x130mm
TCT Saw Blade	Blade Size	360-460mm
Pin hole size	Φ40mm/Φ50mm
Rotating speed	20/180rpm
Length accuracy	+/-0.1mm
Chip clean	Steel Brush
Motor Power	Spindle motor	14 kw/4P
Hydraulic motor	2.2 kw
Cutting servo motor	4 kw
Feeding servo motor	2 kw
Chip conveyor motor	0.2 kw
Coolant pump motor	0.19 kw
Hydraulic	Hydraulic pressure	70kg/m² (7mpa)
Fuel tank volume	90L
Pneumatic	Air pressure	4-8 kg/m² (0.4-0.6mpa)
Feeding & Clamping	Feeding length	10～800 mm
Tailing Length	20～20+α(cutting length)
Feeding drive mode	AC servo motor+ ball screw+ linear guide
Clamping mode	Horizontal clamping & Vertical clamping
Electricity	Voltage & Hertz	3Phase, 380V, 60Hz or customized
Size & Weight	Size	650020001700mm
Weight	6500kg
